Schema Mapping Tutorial

This tutorial provides an introduction to schema mapping with the RAI Integration for Snowflake.

Goal

This tutorial introduces schema mapping with a few simple steps. You will learn how to create and list entities and how to create and list lookup tables.

Data

Consider an example where clients buy products, as represented in this Purchase table:

Client_First_NameClient_Last_NameProduct_NameProduct_Price
JohnSmithScissors12.75
JohnSmithCrayons10.50
LisaBrownScissors12.75

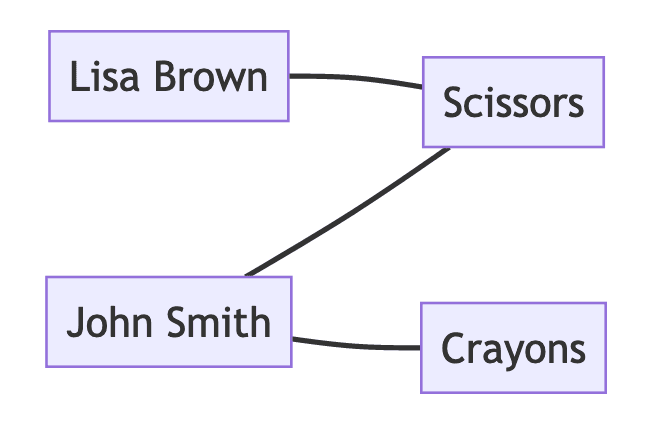

Based on this table, you can construct a graph whose nodes represent clients and products, with edges indicating that a particular client has purchased a specific product. The first two columns, Client_First_Name and Client_Last_Name, are strings that identify clients, while the third column is a string identifying a product. The last column, Product_Price, is identified by a float. The last column is not used in the example. Not all of the data in your SQL table will be part of the schema mapping. Here is a graph representation of the data you are interested in:

Product Graph

The identifying attributes of the objects (Clients and Products) cannot be used to create a graph as they are. They are not identified by integers, which is required by the create_graph procedure. They also differ in arity. Clients are identified by pairs of strings, while Products are identified by single strings. This is solved by defining a bidirectional mapping between objects (using their identifying information) and nodes (identified by unique integer values).

Schema Mapping

Create and List Entities

Once your data is set up in a Snowflake table, use CREATE_ENTITY to declare entities. In the example, the entities are Client and Product. The key representing the entity Client is the combination of first_name and last_name. The entity Product has a single key: name.

-- Create the entity `'Client'`.
CALL RAI.CREATE_ENTITY('Client', ['first_name', 'last_name']);
/*+-----------------------------------------------------------------------+
  | "messages": ["Added entity Client with key [first_name, last_name].]" |
  +-----------------------------------------------------------------------+  */

-- Create the entity `'Product'`.
CALL RAI.CREATE_ENTITY('Product', 'name');
/*+-------------------------------------------------------+
  | "messages" :["Added entity Product with key [name].]" |
  +-------------------------------------------------------+  */
🔎

By default, the functions and procedures in the SQL Graph Library for Snowflake are contained in the RAI schema in your Snowflake database. Note that this schema name may vary depending on how your administrator set up the RAI integration.

Use the tabular function LIST_ENTITIES() to view a table listing the declared entities:

-- View a list of all the entities that have been declared and their keys.
SELECT * FROM TABLE(RAI.LIST_ENTITIES());
/*+-------------+-------------------------------+
  | ENTITY_NAME | ENTITY_KEY                    |
  |-------------+-------------------------------+
  | Client      | [ "first_name", "last_name" ] |
  | Product     | [ "name" ]                    |
  +-------------+-------------------------------+  */

Create and View Lookup Tables

Use CREATE_LOOKUP to create a lookup table. The lookup table holds the association between integer values assigned to particular objects and their identifying information. In the example, it consists of two parts: one with clients and one with products. Each part is loaded with a separate CREATE_LOOKUP call:

-- Create a lookup table for the entity `'Client'`.
CALL RAI.CREATE_LOOKUP('Client', 'Purchase', ['Client_First_Name', 'Client_Last_Name']);
/*+---------------------------------------------------------------------------------------------------------------------------------------------+
  | "Loaded lookup table part for entity Client on table COMMERCE_DB.ONLINE_SHOP.PURCHASE with columns [CLIENT_FIRST_NAME, CLIENT_LAST_NAME].", |
  | "Added lookup table scan for entity Client on table COMMERCE_DB.ONLINE_SHOP.PURCHASE with columns [CLIENT_FIRST_NAME, CLIENT_LAST_NAME]." , |                                                                                                                       |
  +---------------------------------------------------------------------------------------------------------------------------------------------+  */

-- Create a lookup table for the entity `'Product'`.
CALL RAI.CREATE_LOOKUP('Product', 'Purchase', 'Product_Name');
/*+-----------------------------------------------------------------------------------------------------------------------+
  | "Loaded lookup table part for entity Product on table COMMERCE_DB.ONLINE_SHOP.PURCHASE with columns [PRODUCT_NAME].", |
  | "Added lookup table scan for entity Product on table COMMERCE_DB.ONLINE_SHOP.PURCHASE with columns [PRODUCT_NAME].",  |                                                                                                                        |
  +-----------------------------------------------------------------------------------------------------------------------+  */

Use the tabular function LIST_LOOKUPS() to view a table listing the lookup tables:

-- List the lookup tables.
SELECT * FROM TABLE(RAI.LIST_LOOKUPS());
/*+----------------+-------------+------------+-------------+-------------------------------------------------+
  | DATABASE_NAME | SCHEMA_NAME | TABLE_NAME |	ENTITY_NAME | ENTITY_KEY_ATTRS                                |
  |----------------+-------------+------------+-------------+-------------------------------------------------+
  | MY_DATABASE	   | MY_SCHEMA   |	PURCHASE  | Client	    | [ "CLIENT_FIRST_NAME",   "CLIENT_LAST_NAME" ]   |
  | MY_DATABASE	   | MY_SCHEMA   |	PURCHASE  | Product	    | [ "PRODUCT_NAME" ]                              |
  +----------------+-------------+------------+-------------+-------------------------------------------------+  */

Mapping Objects to Node Identifiers

Use the scalar function NODE to define an edge set to be used for graph creation:

-- Define an edge set.
CREATE VIEW Edge(src, dst) AS (
    SELECT RAI.NODE('Client', [Client_First_Name, Client_Last_Name]) as src, RAI.NODE('Product', Product_Name:VARIANT) as dst
    FROM Purchases
);
/*+--------------------------------+
  | View EDGE successfully created |
  +--------------------------------+  */
🔎

The version of NODE that accepts a single key attribute value expects this value to be of type VARIANT. Most basic types are automatically coerced to VARIANT, but others may need explicit casting. For more information, see the Snowflake documentation (opens in a new tab).

Mapping Node Identifiers to Objects

Use the scalar function LOOKUP to get the the object’s key information for the integer of a node that has been previously loaded into the lookup table.

-- Get the object key information for the result.
   SELECT RAI.LOOKUP(-5527614564291079873);
/* +------------------------------+
   | LOOKUP(-5527614564291079873) |
   |------------------------------|
   | {                            |
   |   "first_name": "John",      |
   |   "last_name": "Smith",      |
   |   "type": "Client"           |
   | }                            |
   +------------------------------+ */

Alternatively you could use RAI.LOOKUP_TABLE:

SELECT obj FROM RAI.LOOKUP_TABLE WHERE node_id = -5527614564291079873

Clean Up (Optional)

When you no longer need the graph, remove it from RAI and clean up the lookup table by running DROP_ALL_ENTITIES.

🔎

If you intend to run multiple algorithms on the same graph at different moments in time, it is not necessary to clean up and recreate the lookup table. Both the RAI graph and the lookup table are maintained automatically. Updates to the source tables are automatically propagated to the graph and the lookup table.

Summary

In this tutorial, you learned how to create and list entities and how to create and list lookup tables. This allows you to map an object to a node and vice versa.
