Database Transactions

This guide discusses transactions in the Relational Knowledge Graph System (RKGS) and the main transaction modes you can use to interact with a RAI database.

Introduction

A database transaction is a unit of work that takes the database from one state S to a new state S_new. Transactions happen atomically, meaning that either the entire transaction succeeds, with no externally visible intermediate states and no interference from other transactions, or the database remains at S. In the case of a read-only transaction, the two states are the same.

Transactions serve as a safeguard, ensuring robustness against:

In order to ensure that a database is reliable, transactions must be atomic, consistent, isolated, and durable. These properties are commonly abbreviated as ACID (opens in a new tab).

This guide initially introduces transaction states, followed by an overview of the primary transaction modes within a RAI database. Finally, it delves into concurrent transactions. Overall, the focus is on data transactions. Other type of transactions such as those related to the control plane — for instance, managing engines and users — are not covered in this guide. See the RAI Console overview for more information on those.

Transaction States

Transactions can be in one of five states:

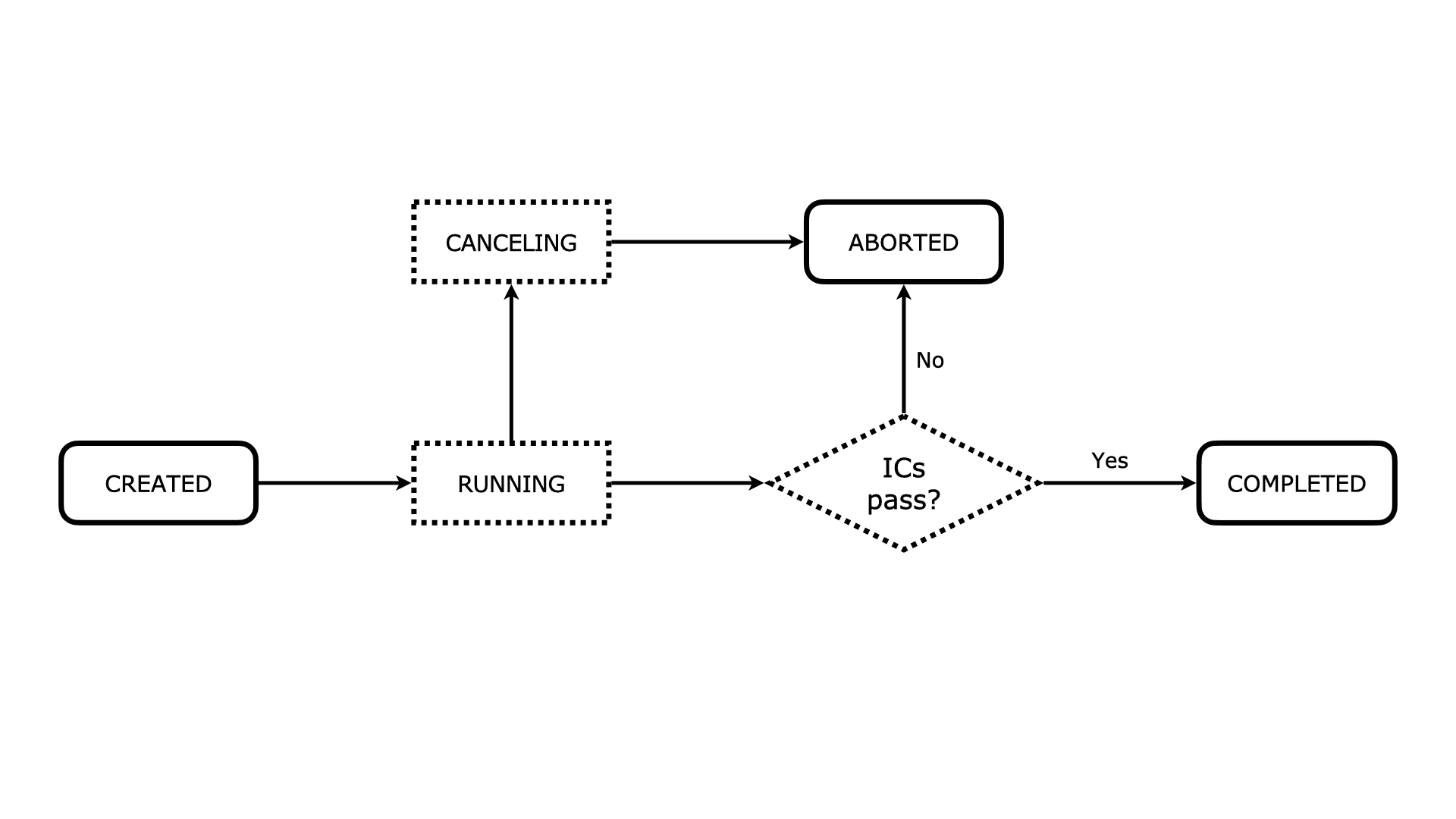

This is the transaction states flowchart:

See Managing Transactions in the RAI Console for more details.

Transaction Modes

The main transaction modes used to interact with a RAI database are:

Their mapping to the RelationalAI SDKs are as follows:

Next, take a look at the transaction modes and how to execute them using different RAI interfaces.

Query

A query transaction allows you to:

• Retrieve information from the database.
• Add, delete, or modify persisted data, which are stored in base relations.
• Alter system behavior by modifying specific control relations.

Here’s an example of a read query using the Python SDK. It assumes that you have an operating database, engine, and context ctx:

rsp = api.exec(ctx, database, engine,
    """
    def output = {1; 2; 3}
    """,
    readonly = True
)
show.results(rsp)

This gives the output:

/:output/String/Int64
(1,)
(2,)
(3,)

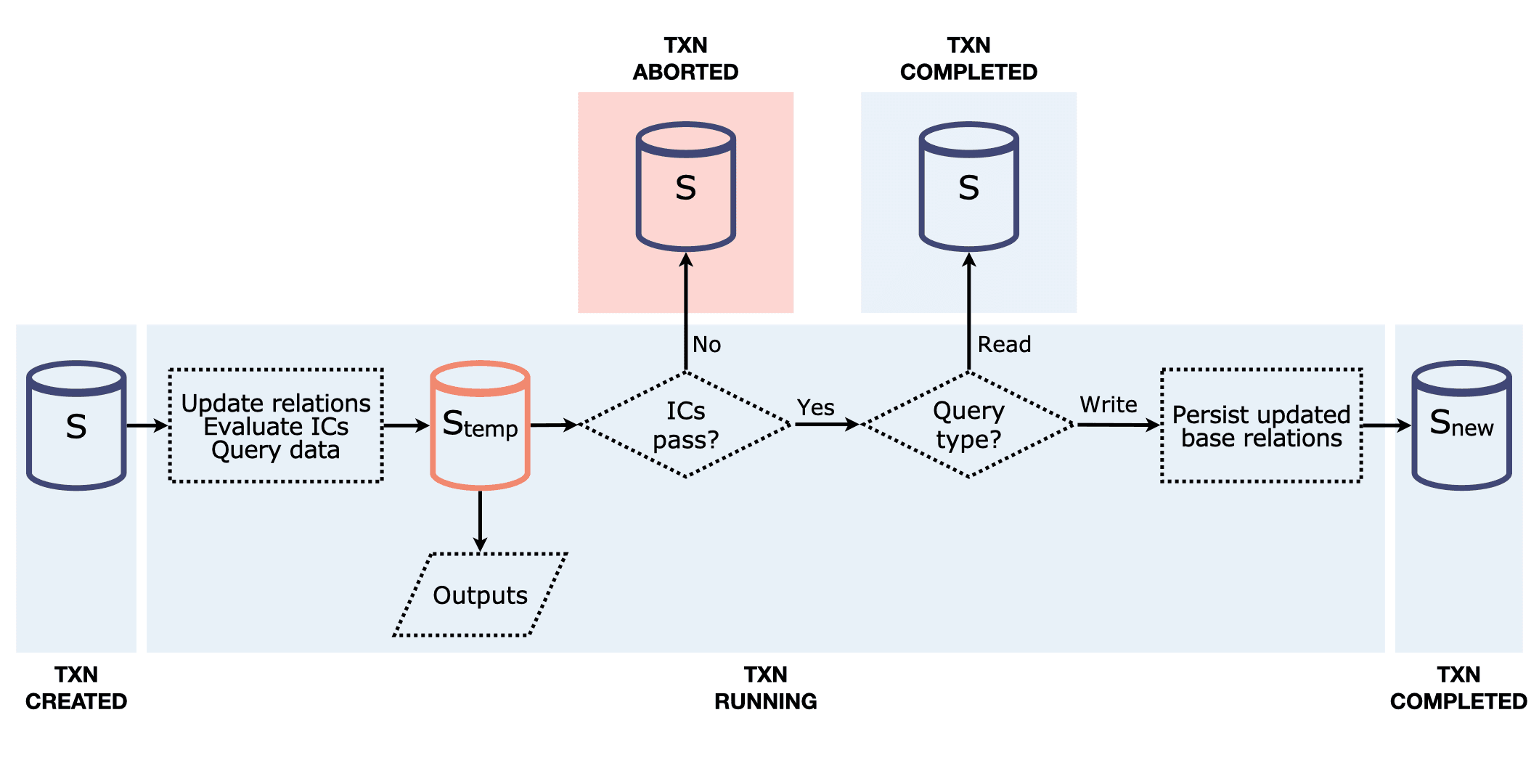

Database State Flowchart

A query transaction can be divided into the following steps:

1. The query code is sent to the system.
2. Changes to base and derived relations are evaluated and applied. More details on this are discussed below in this section.
3. The changes applied to S are in a partially committed state indicated by S_temp. “Partially” means these changes have not yet been persisted in the database.
4. Integrity constraints (ICs) are evaluated in the state S_temp. If any of the integrity constraints fail, the entire transaction is aborted and the database remains at the initial state S.
5. Query outputs, if requested, are sent back to the client whether or not ICs have been violated. Query outputs refer to the partially committed state S_temp.
6. If the transaction is a read query, all changes captured by S_temp are discarded and the database remains in the initial state S.
7. All changes that were made to base relations in the intermediate state S_temp are committed to the database. Changes to derived relations are never committed in a query.
8. The database is now in the state S_new.

The following diagram explains how changes to base and derived relations — going from S to S_temp — are applied:

1. The control relation delete specifies which data should be removed from the base relations when it is materialized. It is evaluated in state S.
2. The control relation insert specifies which data should be updated and/or added to the base relations when it is materialized. It is evaluated in state S.
3. Derived relations are updated by considering data changes to base relations from previous steps, and new declarations and changes to existing declarations of derived relations.
4. ICs are evaluated.
5. The database is now in the partially committed state S_temp.

See Inserts and Deletes in the Same Transaction for more details.

Write Query

Write queries can be used to extract and modify information stored in the database. A write query can execute several instructions that may change the state of the database by modifying some base relations. The changes are persisted in the database if no IC violation or abort has been triggered.

The control relations insert and delete are used to modify base relations. If used in a write query transaction, these changes are persisted and change the database state. If used in a read query, these base relation changes are not persisted.

See Working With Base Relations for more details.

For instance, consider inserting a tool inventory into the base relation inventory, where inventory(x, y) states the number of items, y, of the tool, x.

// write query

def data = {("shovel", 15); ("hammer", 27); ("bucket", 5)}
def insert[:inventory] = data
def output = inventory

Note that the derived relation data is not persisted in the database after the transaction is completed, contrary to the base relation inventory.

When using the RelationalAI SDKs, a write query is mapped into an exec call with readonly = false. Following the example above, and assuming you have an operating database, engine, and context ctx, here’s an API call to insert inventory using the RelationalAI SDK for Python:

rsp = api.exec(ctx, database, engine,
    """
    def insert[:inventory] = {("shovel", 15); ("hammer", 27); ("bucket", 5)}
    def output = inventory
    """,
    readonly=False
)
show.results(rsp)

This gives the output:

/:output/String/Int64
('bucket', 5)
('hammer', 27)
('shovel', 15)

Read Query

Read queries execute several instructions that update the state of the database. Unlike write queries, the outcome of these instructions is not persisted in the database.

They are used to extract information, perform data analysis and inspection, and for data visualization. They can be used to investigate what-if scenarios, such as performing updates to base relations (via insert and delete) without persisting the changes.

For example, say you want to display the inventory base relation:

// read query

def output = inventory

Using the RelationalAI SDKs, the read query is mapped into an exec call with readonly = true. Following the example above, and assuming you have an operating database, engine, and context ctx, here’s an API call to query inventory using the RelationalAI SDK for Python:

rsp = api.exec(ctx, database, engine, """ def output = inventory """, readonly=True)
show.results(rsp)

This gives the output:

/:output/String/Int64
('bucket', 5)
('hammer', 27)
('shovel', 15)

Model Loading

You can persist Rel code in the database by loading it into the database as a model.

A Rel model consists of a set of declarations, including rules, integrity constraints, and others.

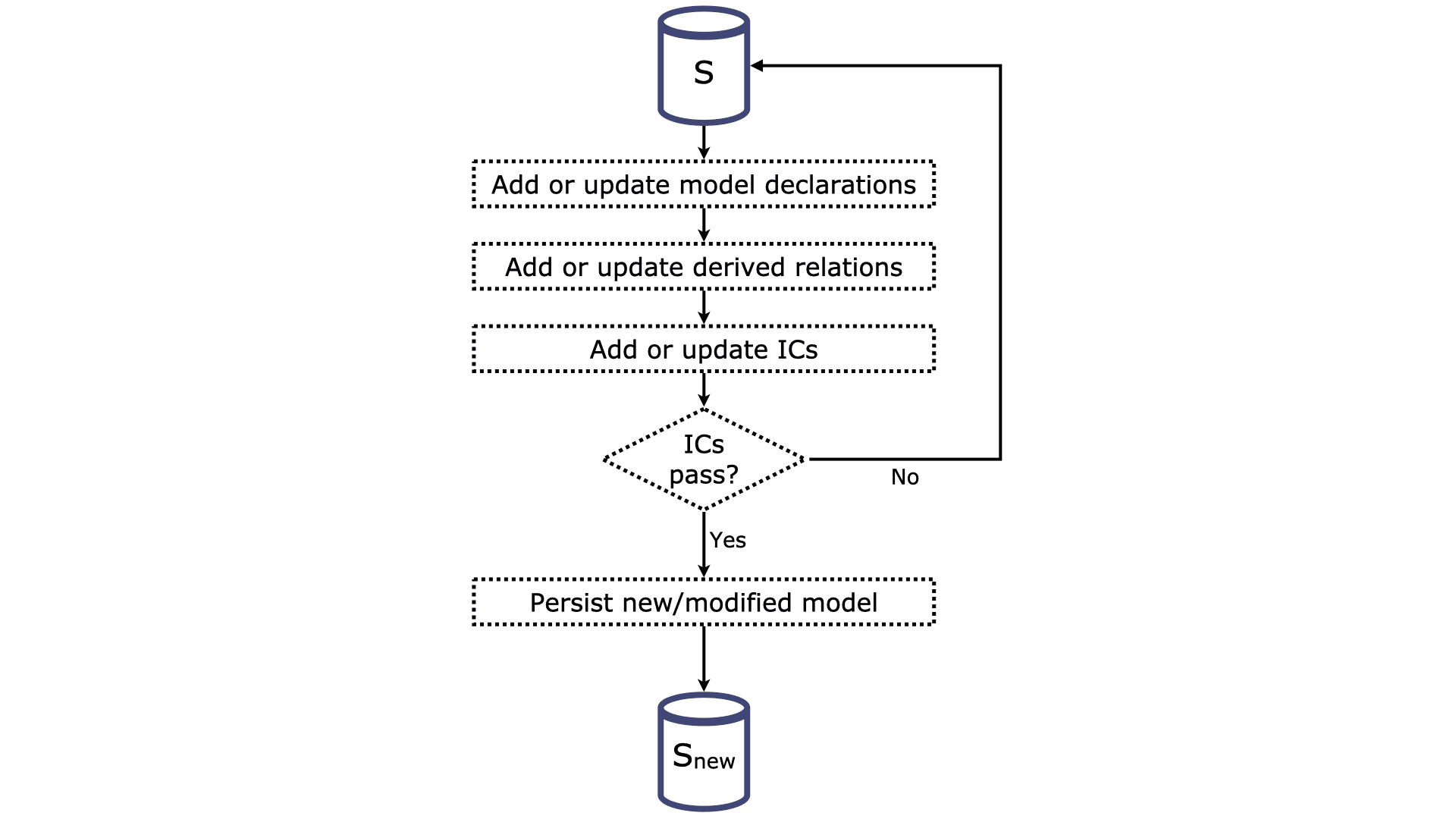

When you load a model, the following steps are executed:

1. The model code is sent to the system.
2. Changes to the model are evaluated and applied. This includes updating derived relations and ICs within the model.
3. ICs are evaluated. If any of the integrity constraints fail, the entire transaction is aborted and the database remains in the initial state S.
4. If none of the integrity constraints fail, the transaction succeeds and the model is updated.
5. The database state is now in the state S_new.

In the RAI Console, you can create, delete, and modify models using the Editor.

Example

For instance, consider loading a model to infer some ICs to the base relation inventory. Say you want to ensure that the amount of items per product cannot be negative. You also want to set a cap on inventory items:

// model

def inventory_count = sum[inventory] <++ 0

ic inventory_is_full {
    inventory_count < 500
}

ic inventory_positive(x, y) {
    inventory(x, y) implies y > 0
}

Note that inventory_count is a derived relation that is persisted in the database as part of the model.

Now, try to insert a product with a negative number of items into inventory:

// write query

def insert[:inventory] = {("screws", -2)}
def output = inventory

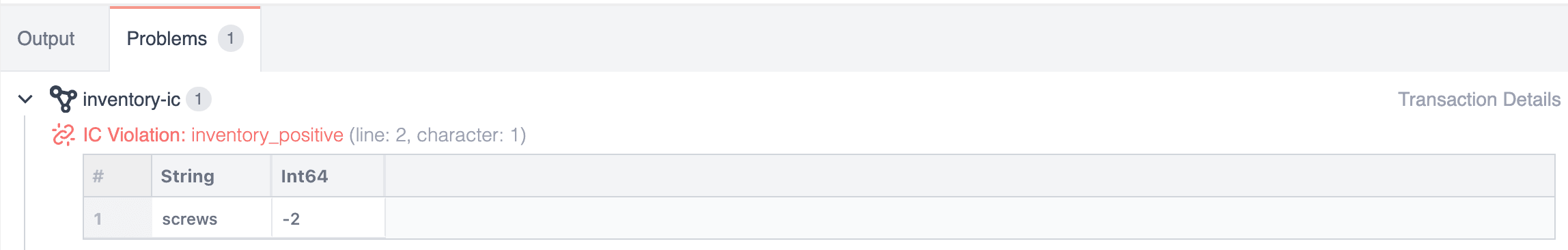

You can see that an IC violation is returned:

When this happens, the entire transaction is aborted and the database is not updated. It remains in the previous state.

Using the RelationalAI SDKs

When using the RelationalAI SDKs, loading a model is mapped to a load_model call. Depending on the SDK language, the name of the load_model method may differ slightly.

For instance, assuming you have an operating database, engine and context ctx, here’s an API call to load the Rel model inventory-ic into the database database using the RelationalAI SDK for Python:

model_code = """ ic inventory_positive(x, y) {inventory(x, y) implies y > 0} """
api.install_model(ctx, database, engine, {"inventory-ic" : model_code})

Using the CLI, the same API call would look as follows:

rai load-model database --engine engine --model inventory-ic code.rel

In this case, the Rel model is defined in the code.rel file.

To load a model into the database, the RKGS internally performs a write query that inserts the model logic into the dedicated base relation rel:catalog, which houses all the installed models.

def insert:rel:catalog:model["my_model"] = "my_rel_code"

Concurrent Transactions

This section discusses concurrent transactions and how multiple simultaneous transactions are handled and impact the database. The most common situations are:

• Multiple Write Queries
• Multiple Read Queries
• Multiple Write and Read Queries

The number of engines involved in processing transactions is important, as it affects how multiple transactions are handled. In a multiple-engine scenario, the need to synchronize between engines creates a higher level of complexity. This section focuses on using one engine only.

The RGKS doesn’t impose any restrictions on transaction duration. However, in certain cases, it may consider a transaction as aborted if the engine it is running on doesn’t send a signal for over an hour.

In general, you can verify that a certain transaction has been successful by querying the updated base relation. You can also check by inspecting the transaction log in the RAI Console.

In case of a conflict, the entire database state is impacted, meaning all or no changes are committed to the database.

Multiple Write Queries

Concurrent write queries are a frequent operation. For instance, when you are constantly updating a base relation by inserting new data.

When there may exist concurrent writes, only one of them proceeds and the rest are blocked until the one that got the “writing slot” is completed or aborted. Then, the operation is repeated among the waiting ones until all write transactions are completed. Therefore, write transactions using one engine at a time are essentially serialized.

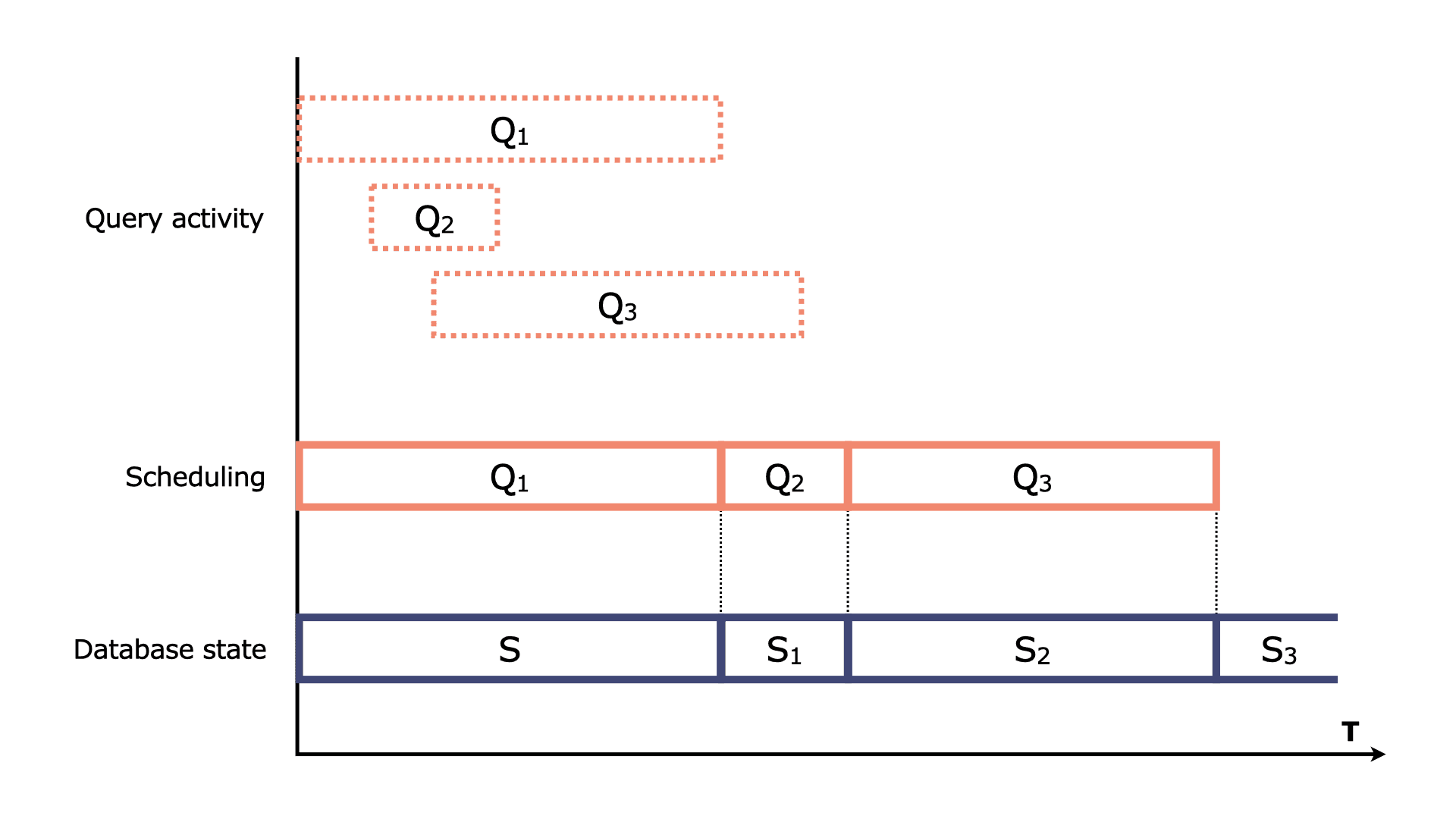

Here’s an example with three concurrent write transactions:

1. The database state is S.
2. Transaction Q1 comes in and is immediately processed.
3. Transactions Q2 and Q3 come in while Q1 is still running. Both transactions wait until Q1 finishes.
4. When transaction Q1 is complete, the database state is now S1.
5. The next transaction to be processed is implemented using condition variables. Whichever is first to wake wins the writing slot. This means that the execution order doesn’t follow the order in which the queries were received.
6. In the diagram above, transaction Q2 wins the writing slot and is the next to be processed. Transaction Q2 is working with the database state S1.
7. When transaction Q2 is complete, the database state is S2.
8. Steps 4 and 5 are repeated until all waiting write transactions are processed.

Thanks to our advanced incremental view maintenance policy, the changes to derived relations, which are triggered by each transaction, are maintained in a highly efficient way. This minimizes computational needs and ensures concurrent transactions are processed as fast as possible.

Multiple Read Queries

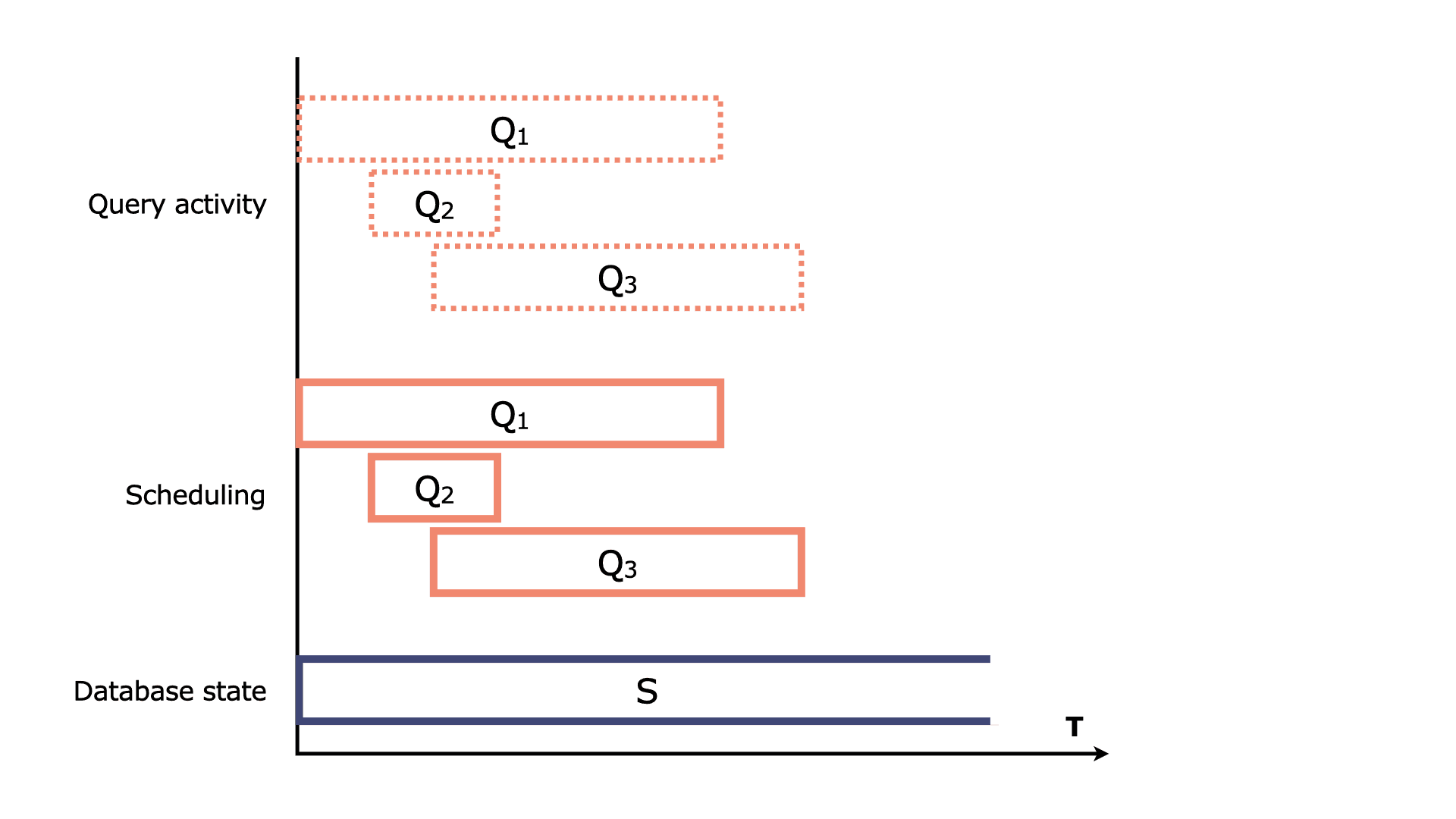

When multiple read queries are executed at the same time, each transaction is completely isolated. This means that each query is independent of each other and they run in parallel.

1. All the concurrent read queries start from the same database state S and are processed simultaneously.
2. After performing changes to base and derived relations, each read query updates the database to a partially committed state S_temp.
3. S_temp is specific to each transaction.
4. Since they are all read queries, the changes triggered by each query (captured by each S_temp) are not persisted and the database remains in the initial state S.

Multiple Write and Read Queries

Here’s an example of concurrent write and read queries using one engine:

1. The database state is S.
2. Write transaction Q1 comes in and is immediately processed.
3. Transactions Q2 and Q3 come in while Q1 is still running. Q2 is processed in parallel since it is a read query and does not persist changes to the database. Write query Q3 waits until Q1 finishes.
4. When transaction Q1 is complete, the database state is S1.
5. The next write transaction to be processed is implemented using condition variables. Whichever is first to wake wins the writing slot. This means that the execution order doesn’t follow the order in which the queries were received.
6. In the diagram above, there is only one write transaction waiting. Transaction Q3 is processed, working with the database state S1.
7. Read query Q4 comes in and it is immediately processed. Transaction Q4 is also working with the database state S1.
8. When transaction Q3 is complete, the database state is S3.
9. Steps 4 and 5 are repeated until all waiting write transactions are processed.

Summary

In summary, a transaction is a unit of work that sends requests from a client to the database where the request is processed. RAI is ACID-compliant.

To modify the base relations in a database, use a write query. To persist rules, integrity constraints and other declarations in the database, load those declarations as a model. Use read queries, which don’t change the database state and are executed concurrently, to extract data from the database.

RAI transactions can be executed concurrently and using different tools, such as the RAI Console or the RelationalAI SDKs.
