Rel Primer: Basic Syntax

This Primer is an introduction to the basic syntax of Rel.

Introduction

This Rel Primer is an introduction to the main features of Rel. It assumes basic knowledge of database concepts and programming.

Rel is RelationalAI’s language for building models and querying data.

Rel has a simple but powerful syntax designed to express a large set of relational operations, build declarative models, and capture general domain knowledge, including, in particular, knowledge graphs.

Relations and Tuples

The most important concept of Rel is that of a relation. Rel imports data into relations, combines relations to define new ones, and queries relations to get answers back — in the form of new relations. Expressions in Rel denote relations, too.

Before describing expressions and other constructs of Rel, this Primer begins with a general overview of relations and their building blocks.

Basic Concepts

Data Values

The basic building blocks of relations are data values. These are values that represent numbers, strings, dates, and the like. Every data value is a member of some data type. For instance, the type of an integer number 1 is different from the type of a string such as “abc.”

Tuples

A tuple is an ordered immutable sequence of data values. Each of the data values in a tuple is called an element of the tuple. In written form, the sequence is typically enclosed in parentheses and its elements are separated by commas.

For example, the empty tuple () contains no elements. The length of this tuple is 0. The tuple (0, “b”, “c”, 0) contains four elements: the integer 0, the string “b”, the string “c”, and the integer 0. The length of this tuple is 4.

The order of elements is important. For instance, the tuple (“abc”, 10, “abc”) is different from (10, “abc”, “abc”). Elements that are identical are indistinguishable, so if you swap the elements of (1, 1) you will still have the same tuple.

Two tuples of lengths $m$ and $n$ can be concatenated to form a new tuple of length $m + n$. For example, the concatenation of tuples (1, 2, 3) and (4, 3) is the tuple (1, 2, 3, 4, 3).

A tuple of length n is often called an n-tuple. There are some convenient special terms for smaller values of n:

• The 0-tuple () is called the empty tuple (there is only one).
• A 1-tuple, such as (0), is called a unary tuple.
• A 2-tuple, such as (0, 1), is called a pair.
• A 3-tuple, such as (0, 1, 2), is called a triple.
• A 4-tuple, such as (0, 1, 2, 3), is called a quadruple.
• A 5-tuple, such as (0, 1, 2, 3, 4), is called a quintuple.

Relations

A relation is an unordered set of tuples. Each of the tuples contained in a relation is called its member. A member of a relation is said to belong to the relation.

The members of a set are customarily written within curly braces and separated with commas. When you write down some representation of a set, you must order the members somehow, but the order does not matter. For instance, { (1, 2), (3, 4) } and { (3, 4), (1, 2) } both represent the same set. Its members are the tuples (1, 2) and (3, 4).

A set can contain only unique elements. You cannot have a relation such as { (1), (2), (1) }, because it contains two identical tuples. Though you can write an expression in Rel that seems to denote { (1), (2), (1) }, it is treated as an expression denoting { (1), (2) }. That is, the uniqueness of members is automatically taken care of when evaluating expressions.

There are two important attributes of a relation: its cardinality and its arity.

The cardinality of a relation is the number of its members. The empty relation {} has cardinality 0. A relation with cardinality 1 — that is, with only one member — is called a singleton relation, or just a singleton. For instance, { (1, 2) } is a singleton.

The arity of a relation is the length of its members. If all the tuples in a relation are of the same length n, then the relation is said to have arity n. In Rel a relation can contain tuples of different lengths. In this case, the relation is said to have (or to be of) a mixed arity.

A relation of arity n is often called an n-ary relation. There are some convenient special terms for smaller values of n:

• The 0-ary relation { () } is called the nullary relation. The empty relation {} is often considered to be a nullary relation, too.
• A 1-ary relation, such as { (0), (1), (2) }, is called a unary relation.
• A 2-ary relation, such as { (0, 1) }, is called a binary relation.
• A 3-ary relation, such as { (0, 1, 2), (1, 2, 0) }, is called a ternary relation.

It’s useful to think of a relation as a database table. Each tuple is then a row of the table, the arity is the number of columns, and the cardinality is the number of rows. The k-th position in the tuples of a relation is sometimes called the k-th column of the relation.

Since the value of a correctly formed expression in Rel is always a relation, it is often convenient to refer to the arity of an expression. When you read that “an expression has arity n,” you should interpret it as “the relation that is the value of the expression has arity n.” Similarly, you can say that an expression “is a unary expression,” etc.

Union of Relations

Let P and Q be two relations. Then the union of P and Q is the relation that contains all the members of P and all of the members of Q and no other tuples.

For example, the union of relations { (1, 2), (3, 4) } and { (5, 6), (1, 2) } is the relation { (1, 2), (3, 4), (5, 6) }.

Product of Relations

Let P be a relation with $m$ members and let Q be a relation with $n$ members. Then the product of P and Q is the relation that contains $m \cdot n$ members, each of which is a tuple from P concatenated with a tuple from Q.

For example, the product of relations { (1, 2), (3, 4) } and { (5, 6), (1, 2) } is { (1, 2, 5, 6), (1, 2, 1, 2), (3, 4, 5, 6), (3, 4, 1, 2) }.

In the context of databases, the product is sometimes called a cross join, an outer product, or a Cartesian product. The last two terms are inspired by mathematics, but are used somewhat differently. In conventional mathematics the Cartesian product of { (1, 2), (3, 4) } and { (5, 6), (1, 2) } is { ((1, 2), (5, 6)), ((1, 2), (1, 2)), ((3, 4), (5, 6)), ((3, 4), (1, 2)) }. That is, the members of the Cartesian product would contain pairs of tuples belonging to the two sets, not their concatentations. The term outer product, in turn, refers to an operation on two vectors.

Literal Expressions in Rel

This section is an introduction to literal expressions, that is, Rel expressions that describe constants.

The Simplest Expressions With Data Values

A Rel expression denotes a relation. When you write a number such as 17, the expression denotes the unary singleton relation {(17)}. Similarly, the Rel expression "abc" denotes the unary singleton relation {(“abc”)}.

Just as in conventional arithmetic, you can use parentheses and curly brackets for grouping. So to underscore the fact that 17 is a relation you can write {(17)}. But this has exactly the same meaning as 17, (17), {17}, (({17})), etc.

The Product Operator

In Rel, the comma is an infix operator that denotes the product of two relations. For instance, 17, "abc" denotes the binary singleton relation { (17, “abc”) }, which is the product of {(17)} and {(“abc”)}.

The comma is an associative operator, that is, (1, 2), 3 and 1, (2, 3) denote the same relation. This is a consequence of how “product” is defined. So you can freely use sequences of commas without considering the order of operations. For instance, 1, 2, 2, 1 denotes a relation whose only member is a quadruple, namely { (1, 2, 2, 1) }.

It is customary to write such an expression in parentheses: (1, 2, 2, 1). This resembles the conventional notation for a tuple.

The expressions () and {()} denote a nullary singleton relation that contains the empty tuple.

The name “product” suggests that there is a certain similarity between this operation and arithmetic multiplication. Just like the multiplication operator, the product operator is associative. Unlike multiplication, the product is not commutative, that is, 1, 2 is not the same as 2, 1. However, the relations {} and {()} are analogous to the arithmetic 0 and 1, respectively.

• For any relation P, both {}, P and P, {} are equivalent to {}.
• For any relation P, both {()}, P and P, {()} are equivalent to P.

In Rel the expression false is a synonym for {} and true is a synonym for {()}. This is further explained in Logical Operators.

The Union Operator

In Rel, the semicolon is an infix operator that denotes the union of two relations. For instance, 17; "abc" denotes the unary relation { (17), (“abc”) }.

The semicolon is an associative operator, that is, (1; 2); 3 and 1; (2; 3) denote the same relation. This is a consequence of how “union” is defined. So you can freely use sequences of semicolons without considering the order of operations. For instance, 1; 2; 2; 1 denotes the relation { (1), (2) } — recall that duplicates are removed when expressions are evaluated.

It is customary to write such an expression as {1; 2}. This resembles the conventional notation for a set, except that you use a semicolon instead of a comma.

The expression {} denotes the empty relation.

The semicolon has a lower precedence — that is, binds less tightly — than the comma, so the expression 1, 2; 3, 4 denotes a set of two pairs.

The operation of computing the union of two relations is somewhat similar to arithmetic addition. As already noted, the semicolon operator is associative. Moreover:

• The semicolon is commutative. For instance, the expressions 1; 2 and 2; 1 denote the same set.
• The comma distributes over the semicolon. For instance, 1, (2; 3), 4 is equivalent to 1, 2, 4; 1, 3, 4.
• The empty relation {} plays a role analogous to the arithmetic 0. For any relation P, {}; P and P; {} are both identical to P.

Giving a Relation a Name

You can give a name to an expression that denotes a relation. This allows you to refer to the relation without having to repeatedly write out the defining expression.

To give a relation a name, you use a construct called a rule, also known as a definition. For example:

def firstFive { 1; 2; 3; 4; 5 }

The expression firstFive now refers to the unary relation that contains a tuple for each of the first five natural numbers.

You can also write:

def firstFive = 1; 2; 3; 4; 5

This is just an alternative syntax for the previous example.

In both cases def firstFive is the left-hand side of the definition, and 1; 2; 3; 4; 5 is the right-hand side of the definition. The left-hand and right-hand sides are also called the head and the body of the definition, respectively.

If a relation has been given a name, you can use the name in Rel expressions. For instance, you can use it as the right-hand side of another definition, like this:

def five_naturals = firstFive

From now on, the name five_naturals refers to the same relation as firstFive. See Dependencies Between Rules for more details.

You can also write the above as:

def five_naturals { firstFive }

Here is a somewhat more realistic example. Suppose you want to define a relation that gives the clubs for some of your favorite soccer players. One way to do it is like this:

// read query

def club {
   ("Neymar", "PSG");
   ("Messi", "BFC");
   ("Werner", "Chelsea");
   ("Pulisic", "Chelsea")
}

def output = club


Rel chooses a default order to display the tuples in the relation, which may be different from the order used to write the relation down, as in this example. You should not assume that tuples will appear in any particular order; but you can use utilities like enumerate, top, and bottom to sort and rank them.

Comments

Comments in Rel are similar to the ones found in the programming languages C and C++.

Writing // indicates that the following text is treated as a comment that extends until the end of the current line.

Writing /* indicates that the following text is treated as a comment that extends until the nearest occurrence of */.

For example:

def primes = 2; 3; 5; 7      // The single-digit primes
def odd    = 1; 3; 5; 7; 9   // The single-digit odd numbers
/*
 * NOTE: If you want a lot more numbers of a particular kind, you might be better off
 *       generating them algorithmically, rather than writing them by hand.
 */

Relational Application

Assume you have the following relation with information about the surnames, first names, and ages of a group of people:

// model

def age {
    ("Smith",  "Jane",  20);
    ("Smith",  "John",  21);
    ("Smith",  "Jane",  22);
    ("Miller", "Jane",  21);
    ("Miller", "John",  20)
}

You can give the entire relation another name:

// read query

def output = age

Recall also that output is special only in that its contents are printed out. Otherwise, it’s just like any other relation.

Square Brackets on the Right

If you are interested only in those tuples in age that begin with a particular surname, you can use square brackets, like this:

// read query

def output = age["Smith"]

The expression age["Smith"] is an example of a partial relational application. In this case the relation age is applied to the argument "Smith". Here’s one way to describe the mechanism of evaluating such an expression:

1. It selects those tuples in the applied relation whose initial element matches the argument.
2. It removes the first element from each selected tuple (in a way that does not affect the applied relation).
3. Finally, it inserts the modified tuples into a new relation. This relation is the value of the expression.

In the example above the resulting relation was given the name output.

If there are no tuples whose initial element matches the argument, then the resulting relation is empty. In Rel the empty relation {} is equivalent to false, so it is natural to interpret an empty result as “No, there are no tuples whose initial element matches the argument”:

// read query

def output = age["Schmidt"]

Square Brackets on the Left

Square brackets can also be written on the left-hand side of a definition. When you add something in square brackets after the name in the head of a rule, Rel extends each tuple from the body with an additional initial element specified in the square brackets, and gives the result a name.

You can use this feature to preserve the elements removed during partial relational application, thus restricting its effect to selecting the interesting tuples:

// read query

def output["Smith"] = age["Smith"]

In general, you can add anything you want:

// read query

def R["Cadet"] = age["Smith"]

def output = R

A relation name followed by square brackets in the head of a definition is also a partial relational application. Consider the following:

// read query

def R["Cadet"] = age["Smith"]

def output = R["Cadet"]

Here, R is a relation such that the partial application R[Cadet] is the relation described by the body of the definition of R.

Multiple Square Brackets

The result of a partial relational application is a relation. If the arity of that relation is not zero, you can use it in a partial relational application, for example like this:

// read query

def output = age["Smith"]["Jane"]

Here you got a relation that contains the ages of those people whose surname is "Smith" and whose first name is "Jane".

Before giving a name to the relation, you can extend it by using multiple square brackets on the left-hand side:

// read query

def output["Space"]["Cadet"]["Jane"]["Smith"] = age["Smith"]["Jane"]

Variable Arguments

The argument of a partial relational application can also be a variable. The written form of a variable is an identifier. You can think of it as a placeholder that can match a data value. Once it matches something, it becomes instantiated to that data value and is essentially indistinguishable from it.

For example:

// read query

def output[y] = age["Smith"][y]

What happened here? It might be helpful to trace it out in detail:

• Recall that the value of age["Smith"] is the relation {("Jane", 20), ("Jane", 22), ("John", 21)}.
• The variable y matched the first element of ("Jane", 20), so it was instantiated to "Jane".
• The expression age["Smith"][y] thus became age["Smith"]["Jane"], whose value is the relation { (20); (22) }.
• So output must contain the tuples of this relation, extended with an additional initial element specified in the head of the rule: the instantiation of y, that is, "Jane".
• The variable y was then instantiated to the other value that occurs among the first elements of the relation age["Smith"], which is "John".
• The expression age["Smith"][y] thus became age["Smith"]["John"], whose value is the relation { (21) }.
• So output must contain the tuples of this relation, extended with the instantiation of y, that is, "John".

In this case the result was as if you had written def output = age["Smith"]. But in general you can use variables much more flexibly. For instance, you can find out the surnames and ages of people whose first name is “Jane”:

// read query

def output[x] = age[x]["Jane"]

You might find it instructive to figure out the details of how the above works. But doing so is rarely needed, thanks to the declarative nature of the language.

As another example, you can define a new relation in which the order of the names is different from the one in age:

// read query

def output[y][x] = age[x][y]

For every tuple in age there is a corresponding tuple in output, but with the first two elements swapped.

A variable is identified by its name, so the partial relational application age[x][x] would construct a relation with the ages of those people whose both names are identical. In this case, the result would be the empty relation {}.

Note, however, that repeating a variable on the left-hand side would not have the expected effect:

def output[x][y][x] = age[x][y]

The compiler will treat this as the introduction of two variables named x and will generate an error message about one of them being “unbound.”

The workaround looks like this:

// read query

def output[z][y][x] = age[x][y], z = x

See Comma and Semicolon as Logical Operators for an explanation.

A List of Items in Single Square Brackets

The value of age["Smith"]["Jane"] is a unary relation, so you can use it in a partial relational application:

// read query

def output = age["Smith"]["Jane"][20]

The first element in the copy of tuple (20) was removed, leaving the empty tuple (). So the resulting relation is {()}. In Rel, the nonempty nullary relation {()} is equivalent to true. The intuitive meaning of the result is “Yes, the relation age["Smith"]["Jane"] does contain the tuple (20).”

You can also interpret this as “The relation age["Smith"] contains the tuple ("Jane", 20),” or “The relation age contains the tuple ("Smith", "Jane", 20).”

Rel allows you to write [x, y] instead of [x][y]. So, depending on the way in which you want to look at your result, you can choose one of the following equivalent definitions:

def output = age["Smith"]["Jane"][20]
def output = age["Smith", "Jane"][20]
def output = age["Smith"]["Jane", 20]
def output = age["Smith", "Jane", 20]

The form with only one set of square brackets is the most frequently used in practice. You can also use this notation on the left-hand side of a definition.

You can apply this notation even if the result is not an empty tuple. For instance, age["Smith", "Jane"] is equivalent to age["Smith"]["Jane"].

You can see it as a partial relational application with an argument in the form of a tuple. The explanation of the mechanism for evaluating a partial relational application could be amended as follows:

1. It selects those tuples in the relation that have a prefix matching the argument tuple.
2. It removes the matching prefix from each selected tuple (in a way that does not affect the applied relation).
3. Finally, it inserts the modified tuples into a new relation. This relation is the value of the expression.

Similarly, by using the form with commas on the left-hand side of a definition you are specifying a tuple that will be added as a prefix to the tuples of the relation that is being given a name.

Saying “this partial relational application has three arguments” is customary, and perhaps more convenient than saying “the argument of this relational application is a triple.”

Parentheses

In the last example of a partial relational application the number of arguments was equal to the arity of the relation. Such an application is no longer really a “partial” one. Moreover, as you saw, its value can only be {} or {()}, that is, either false or true.

Rel provides special syntax for this important case. Instead of square brackets you can use parentheses. Such a construct is called a relational application:

// read query

def output = age("Smith", "Jane", 20)

A boolean expression is an expression whose value must be false or true. In the context of Rel, a boolean expression is often called a formula. So a relational application is an example of a formula.

If the right-hand side of a definition is a formula, you can also use parentheses on the left-hand side of a definition. In fact, this is the recommended style:

// read query

def output(y, x, z) = age(x, y, z)

The difference between parentheses and square brackets is more than just a notational convention. If the number of arguments in a relational application is smaller than the number of elements in any tuple, then the relational application is always evaluated to false, and the compiler warns you that there is a mismatch in arity.

// read query

def output = age("Smith", "Jane")

If the relation has a mixed arity, that is, contains tuples of different lengths, then a relational application picks up only those tuples whose length is equal to the number of arguments. If the number of arguments does not match the size of any tuples, no error is reported. Compare the following four examples:

// read query

def mixed {("Wilson", "Adam", 20); ("Willis", "Joseph", 50, "boss") }
def output[x, y] = mixed[x, y]

// read query

def mixed {("Wilson", "Adam", 20); ("Willis", "Joseph", 50, "boss") }
def output(x, y) = mixed(x, y)

// read query

def mixed {("Wilson", "Adam", 20); ("Willis", "Joseph", 50, "boss") }
def output(x, y, z) = mixed(x, y, z)

// read query

def mixed {("Wilson", "Adam", 20); ("Willis", "Joseph", 50, "boss") }
def output(x, y, z, v) = mixed(x, y, z, v)

Note that you can obtain a formula even with a partial relational application, for instance by using the equality operator =. If R is a unary relation and x is a variable, then the expression x = R — or R = x — is equivalent to R[x], that is, its value is true or false, and if it’s true then it may additionally instantiate x, as discussed in Variable Arguments. So, for example, the right-hand side of the following definition is a formula, and the variable x ranges over the unary relation age["Smith", "Jane"]:

// read query

def output(x) { x = age["Smith", "Jane"] }

You can combine this with a variable that ranges over the first names:

// read query

def output(firstName, x) { age["Smith", firstName] = x }

A more conventional way of writing this would be:

// read query

def output(firstName, x) { age("Smith", firstName, x) }

Varargs allow you to express it more succinctly:

// read query

def output(x...) { age("Smith", x...) }

By using varargs you can allow your relational application to pick up tuples of any length:

// read query

def mixed {("Wilson", "Adam",   20); ("Willis", "Joseph", 50, "boss"); ("what?"); () }
def output("LHS", x...) = mixed(x...)

As you can see, with varargs you can use a relational application to simulate a partial relational application in its full generality. To give another example:

// read query

def output(x...) = age("Smith", x...)

This, however, is not the recommended style. Varargs are best reserved for situations in which the arity of the applied relation is not fixed or unknown.

Logical Operators

Say you have defined and installed the following relations:

// model

def character { ("cat", "Felix"); ("beagle", "Spike"); ("duck", "Scrooge") }

def mammal { "pig"; "cat"; "beagle"; "whale" }
def bird   { "sparrow"; "duck"; "parakeet"; "vulture" }

As explained in Relational Application, a relational application evaluates to either {} or {()}, depending on whether the arguments match some tuple in the applied relation. Compare, for instance, these two examples:

// read query

def output = bird("duck")

// read query

def output = mammal("duck")

In the first example, output was the relation {()}, which was displayed as the empty tuple (). In the second example, output was the empty relation {}, which was not displayed.

As noted in Product Operator, in Rel the relations {} and {()} are given the names false and true, respectively. The two examples above show why this makes sense. Indeed, a duck is a bird and is not a mammal.

Rel features logical operators for negation (not), conjunction (and), and disjunction (or). Each of the logical operators is defined so that every operand is either {} or {()} and so is the result.

Here is an example of negation:

// read query

def output = not mammal("duck")

Notice that the operand of not is a relational application, and therefore a formula. The relational application is evaluated first, therefore not is applied to either false or true. The same principle applies to the other logical operators: Their operands are evaluated first.

Here are two examples of conjunction:

// read query

def output = character("cat", "Felix") and not mammal("cat")

// read query

def output = character("cat", "Felix") and mammal("cat")

As noted in Variable Arguments, you can use variables instead of literals. This makes the examples somewhat more interesting.

The following computes the kinds and names of those characters that are mammals:

// read query

def output(kind, name) = character(kind, name) and mammal(kind)

Roughly speaking, the evaluation is as follows:

1. The tuple (kind, name) is successively matched against each of the tuples in character. This instantiates the variables kind and name, thus instantiating the tuple (kind, name) to a tuple in character. Therefore character(kind, name) evaluates to true.
2. If the instantiation of kind is in the relation mammal, then mammal(kind) evaluates to true; otherwise it evaluates to false.
3. The entire body evaluates to true if and only if both the operands of and evaluate to true. If the body evaluates to true, then the current instantiation of the tuple (kind, name) is added to output.

The following computes the kinds and names of those characters that are not mammals:

// read query

def output(kind, name) = character(kind, name) and not mammal(kind)

The process is very similar to the one described above. Notice that kind becomes instantiated only to one of the first elements in the tuples of character, not to anything in the universe that is not a mammal.

If you want to list characters that are either mammals or birds, you can use disjunction as the second operand of a conjunction:

// read query

def output(kind, name) = character(kind, name) and (mammal(kind) or bird(kind))

Disjunction is true if one or both of the operands are true. For example:

// read query

def p =  1; 2
def q =  2; 3

def output =  (p(1) or q(1)) and (p(2) or q(2))

The expression p(1) or q(1) is true, because p(1) is true, even though q(1) is not. The expression p(2) or q(2) is true, because both p(2) and q(2) are true.

Comma and Semicolon as Logical Operators

Recall that, for any relation P, the product of {()} and P — or P and {()} — is P, while the product of {} and P — or P and {} — is {}. In particular, if the operands of the product operator , are formulas, the result is true if and only if both the operands are true.

Similarly, if the operands of the union operator ; are formulas, the result is true if and only if at least one of the arguments is true. Notice that true; true is true, because the union of {()} and {()} is {()}.

So you can always replace conjunction and disjunction by product and union, respectively:

// read query

def output(x, y) = character(x, y) , (mammal(x) ; bird(x))

The opposite, however, is not true. Product and union are more general than conjunction and disjunction.

This is because you can only use conjunction and disjunction if both the operands are formulas, that is, evaluate to true or false. If that is not the case, the result will be an error:

// read query

def output[x] = character[x] and mammal(x)

You can obtain the desired effect by using a comma and a semicolon, as shown in the examples below:

// read query

def output[x] = character[x], mammal(x)

// read query

def output[x] = character[x], mammal(x) ; character[x], bird(x)

When only one operand of , is a formula, and the other is a relation whose arity is greater than zero, you can say that the relation is filtered by the formula. In the first example above, the formula mammal(x) filters the unary relation character[x]. That is, the result is a unary relation containing the names of those characters that are mammals. This filtered relation is then extended — on the left-hand side — by the corresponding instantiations of x.

The second example computes a union of two unary relations. One contains the names of those characters that are mammals and the other one contains the names of those that are birds.

The principles outlined above apply also to infinite relations defined in the Standard Library. For example, the infinite relation gt, whose name is an acronym for “greater than,” contains the tuple (3, 1), but it does not contain the tuple (1, 3). You can write a relational application such as gt(3, 1) in infix form as 3 > 1.

In the following example, the relation R is a product of { 1; 2; 3 } and { 2; 1 }:

// read query

def R = { 1; 2; 3 }, { 2; 1 }
def output = R

A relational application of R is a formula, so you can extract a subset of its tuples by using a conjunction:

// read query

def R = { 1; 2; 3 }, { 2; 1 }
def output(x, y) = R(x, y) and x > y

If you use R in a partial relational application, you can filter it by using the product operator:

// read query

def R = { 1; 2; 3 }, { 2; 1 }
def output[x] = R[x], x < 3

Notice, however, that in this case the filter could not express the condition that the second element is smaller than the first, because there is no variable that ranges over the second element.

Partial Applications Are Not Functions

In many settings, [] looks like a function call — as in add[1, 2] or cos[2 * pi_float64] — but unlike a function call, such an expression may evaluate to a relation that contains zero elements or more than one element.

In the example below, neighbor[x] can have zero, one, or two elements for each x:

// read query

def neighbor(x, y) {
    (y = x + 1 or y = x - 1) and x > 0 and y > 0
}
def output["zero"] = neighbor[0]  // Has zero elements because `x` cannot be `0`.
def output["one" ] = neighbor[1]  // Has one element because `y` = `2` or `y` = `0`, but `y` cannot be `0`.
def output["two" ] = neighbor[2]  // Has two elements because `y` = `3` or `y` = `1`, which are both valid.

Operator Distribution

If R is a relation whose arity is not zero, and S is a unary relation, Rel can evaluate R[S]. The result is the union of R[x] over all the tuples x in S. For example:

def output = neighbor[{1; 3}]

The result is {2; 4}, since neighbor[1] is {2} and neighbor[3] is {2; 4}.

Here’s another example:

// read query

def output = {1; 2} + {3; 4; 5}

The expression {1; 2} + {3; 4; 5} is equivalent to add[{1;2}, {3;4;5}], which is equivalent to add[{1;2}][{3;4;5}]. The relation add is partially applied to the unary relation {1; 2}, and the resulting relation is partially applied to the unary relation {3; 4; 5}.

The result would have been the same if you had written:

def output = 1 + 3; 1 + 4; 1 + 5; 2 + 3; 2 + 4; 2 + 5

You can say that operators such as + distribute over the union of unary relations.

Note: In the expression R[S], the relation S must have arity 1, unless R is a higher order definition. See @inline Definitions in the Rel Primer: Advanced Syntax guide.

Base and Derived Relations

The RelationalAI documentation often has small relations with sample data built into the Rel code, as in the definition of club above. Typically, though, “raw” data are stored in relations by ingesting them from outside sources, such as JSON or CSV files. No definitions are necessary for these relations, called base relations. See Working With Base Relations.

By contrast, relations defined by rules are derived relations, also known in the database world as views.

Derived relations are transient, local only to a query, unless:

1. You use their contents to create new base relations.
2. You install their definitions — hence the term “installed view.”

Database logic is defined by a set of rules, also known as definitions. Each derived relation can refer to other derived relations, relations defined in libraries such as the Standard Library, and base relations.

Some quick things to know about rules:

• Their order does not matter.
• A relation in Rel is the union of the relations defined by the rules that name the relations in their heads. The rules in the following example define myrel to be { 1; 2; 3 }:

// read query

def myrel = {}
def myrel = 1; 2
def myrel = 2; 3


• Rules for a particular relation — that is, those that name the relation in their heads — can be interspersed with rules for other relations. It is best to avoid this when possible, because it affects readability.

• Definitions can be recursive — see Recursion.

• Relations can be overloaded by arity and type — see Advanced Syntax.

A rule is an example of a declaration. Other kinds of declarations are integrity constraints, bound declarations, and module declarations.

A collection of declarations that are intended to be logically related is often called a Rel model.

The evaluation of a query is based on the entire collection of:

• The base relations in the database.
• The declarations in all of the models that are installed in the database.
• The declarations in the query.

Dependencies Between Rules

A very important property of rules is this:

• If you define a relation Q in terms of relation R, then subsequent changes to R will be reflected in Q.

The following example defines three relations. R is defined in terms of P and Q (see Operator Distribution for an explanation of P[Q]).

// model

def P = (1, "a", "A"); (2, "b", "B")
def Q = 2; 3; 4
def R["letter"] = P[Q]

The contents of R are as expected:

// read query

def output = R

If you now add new tuples to P and Q, relation R will be automatically updated:

// read query

def P = (3, "c", "C")
def Q = 1
def output = R

Optional Schema Declaration

Rel does not require predefined schemas. When you create a base relation or a derived relation in Rel, the system automatically tracks the arity and type of the tuples in the relation. Unlike in traditional database systems, you do not have to specify this information beforehand as a “database schema.”

You can, however, enforce schemas if you want. You can introduce integrity constraints that restrict the arity and types of relations, for instance. You can also use bound declarations.

Relational Abstraction

Recall that a relation is a set of tuples. One way to describe a relation is to write down a formula that is true exactly for those tuples in the relation and false for all others.

You can see this most clearly in definitions that introduce a variable for each column in the left-hand side of the definition, as in def myrel(x1, x2, ..., xn) = ..., and then give a boolean expression on the right-hand side that constrains those variables:

// read query

def mydomain(x) = range(1, 7, 1, x) // `x` will range over 1; 2; 3; 4; 5; 6; 7.
def myrel(x, y) {
    mydomain(x)
    and mydomain(y)
    and x + y = 9
 }
def output = myrel

Note that the Rel Standard Library has many utility relations including the one used here: range(start, stop, step, x) is true if x appears in the sequence of integers from start to stop (inclusive), counting in increments of step.

This style is preferred, since it often leads to more readable definitions. However, relations can also be specified using relational abstraction, indicated by : in Rel. The definitions above are equivalent to:

// read query

def mydomain = x : range(1, 7, 1, x)
def myrel {
    x, y : mydomain(x)
    and mydomain(y)
    and x + y = 9
 }
def output = myrel

The items listed on the left of the colon are called bindings. In this example each binding is just the name of a variable, but it can be more. See Binding Shortcuts.

The general pattern used here is bindings : expression. This is called a relational abstraction, because it defines an anonymous relation that is derived from — but, in general, not identical to — the relation that is the value of the expression that follows the colon.

This use of : is similar to the vertical bar $|$ used for describing mathematical sets (opens in a new tab). You can read it as “such that.” The bar separates the variables from the conditions: for example, $\{ n | n\ \text{is integer and}\ 0<n<10 \}$. There are variables on the left of the :, a boolean condition over those variables on the right, and the set contains all the combinations of elements for those variables — that is, tuples — that make the condition true.

But in Rel, : can do much more. The expression Expr in vars : Expr does not have to be a formula, that is, its value can be a relation whose arity is greater than 0. If Expr has arity $n$, the tuples from the value of Expr are appended to the instantiations of vars, and the total arity will be the number of variables in vars plus $n$. For example:

// read query

def mydomain = x : range(1, 4, 1, x)
def myrel = x : x * 5, mydomain(x)
def output = myrel

This is similar to how , works. For both : and ,, when the right-hand side is a boolean expression, it works as a filter. For example, x * 5 is computed only for those values of x that satisfy mydomain(x). If the right-hand side is not a boolean expression, then the value of the expression is appended to the tuple.

This offers a way to do group-by aggregations. For more details, see Group-By in the Rel Primer: Aggregations, Group-By, and Joins guide.

The mechanism described above is essentially identical to that for partial relational applications. In fact, you can rewrite the last example as follows:

// read query

def mydomain = x : range(1, 4, 1, x)
def myrel[x, y] { y = x * 5, mydomain(x) }
def output = myrel

In this formulation it is clear that every tuple obtained from mydomain(x) (for some instantiation of x) is extended on the left with the instantiation of x and the value of x * 5. Since mydomain(x) happens to be a formula, each such tuple happens to be empty, so the result will consist of just the extensions.

Binding Shortcuts

It is often useful to put filters in the bindings, that is, on the left-hand side of : in a relational abstraction. For this, you can use in and where, which can be used directly wherever variables are introduced, to restrict the domain of the variables. For example:

// read query

def mydomain(x in range[1, 7, 1]) = true // Same as: `def mydomain = range[1, 7, 1]`
def myrel = x in mydomain, y in mydomain where x + y = 9 : x * y
def output = myrel

Note that while in restricts the domain of a single variable, where can restrict combinations of variables. Moreover, where must appear after all the variables in a sequence of bindings, whereas in must appear after each individual variable.

Note also that you cannot use where on the left-hand side of a definition, but you can use in.

A Note About Style

When you define a relation in the style of def myrel = x1, ..., xn : Expr, the arity of myrel depends on the arity of the expression on the right (Expr), which might not be clear at first sight. You only know that the arity of myrel will be at least $n$. By contrast, the definition def myrel(x1, ..., xn) = ... makes it explicit that the arity of the relation is exactly $n$, which is why it is usually preferred.

Similar considerations apply to the choice between square brackets and parentheses on the left-hand side of a definition. You can always replace the left-hand side def myrel(x, y) by def myrel[x, y]. But when you use parentheses you are thereby declaring that myrel is a binary relation. Moreover, the compiler will detect an error if the right-hand side of the definition is not a formula.

Using round parentheses on the left-hand side of a definition is not always preferable. For instance, you might have a relation that contains the list prices and the discounts for various items of merchandise, like this:

// model

def list_price {
   "couch", 500;
   "table", 400;
   "chair",  50
}
def discount {
   "table", 50;
   "chair", 13;
   "couch", 75
}

If you want to compute the final prices of all the items in the generally preferred style, you can write:

// read query

def output(item, price) {
   exists( listed, reduced : list_price(item, listed)
                             and discount(item, reduced)
                             and price = listed - reduced)
}

The example features existential quantification, which will be explained in the second part of this Primer. Without quantification, you would have to mention the variables listed and reduced on the left-hand side, in order to include their instantiation in the resulting relation.

You can simplify this example by using partial relational application, as well as square brackets on the left-hand side:

// read query

def output[item] = list_price[item] - discount[item]

This form is more succinct and more idiomatic.

To store the entire relation with final prices, you can follow the pattern above, using a name such as prices instead of output. But if you want, say, only to show the prices for the first two items in this relation, you don’t have to give it a name. Just use relational abstraction and pass it directly to top:

// read query

def output = top[2, (item : list_price[item] - discount[item])]

Notice that the relational abstraction must be enclosed in parentheses or curly brackets to ensure that 2 is treated as the first argument of top, and not as a part of the bindings.

A Note About the Example

It is worth noting that the example above works only because each item appears exactly once in each of the source relations. If you extend the relations with an item whose name is not unique, you will get all the possible combinations of list price and discount for this item:

// read query

def list_price = "couch", 700
def discount   = "couch", 150

def output[item] = list_price[item] - discount[item]

If this is not clear, you can revisit the discussion of partial relational application and of operator distribution.

Finally, in case an item appears only in list_price, but not in discount, its price will not be computed:

// read query

def list_price = "credenza", 990

def output[item] = list_price[item] - discount[item]

What happened here? The expression list_price["credenza"] - discount["credenza"] evaluates to the empty relation, because the value of discount["credenza"] is the empty relation.

The first — more complicated — definition of the price relation would have the same effect, because discount("credenza", price) would evaluate to false.

There are two ways to fix this. One way is to use a conditional expression:

// read query

def list_price = "credenza", 990

def output[item] =
   if discount[item] then list_price[item] - discount[item] else list_price[item] end

Notice that you can use discount[item] as a boolean condition, because {} is equivalent to false.

The more idiomatic solution is to use a left override. The expression to the right of <++ provides a default value if the expression to the left evaluates to the empty relation:

// read query

def list_price = "credenza", 990

def output[item] = list_price[item] - discount[item] <++ list_price[item]

Computing Arity and Cardinality

As noted in Relations, if you think of relations as tables, the arity of a relation is the number of columns, and the cardinality is the number of rows.

Arity

To compute the arity of a relation, you can use arity:

// read query

def R = {(1, "a"); (1, "b"); (1, "c")}

def output = arity[R]

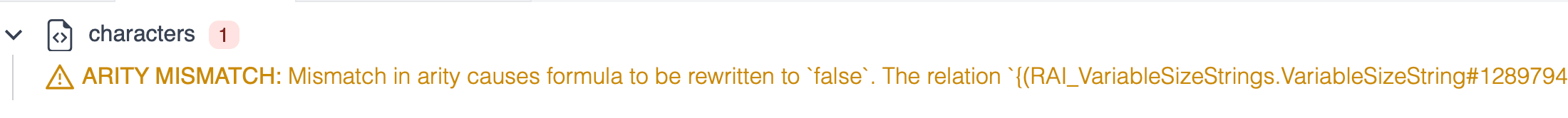

In fact, arity computes the lengths of all tuples in a relation. If a relation contains tuples of various lengths, arity will return all tuple lengths that occur in the relations:

// read query

def R {
   ("SKI CHAMPIONSHIPS", 2009);
   ("SKI CHAMPIONSHIPS", 2009, "Lindsey", "Vonn", "Downhill")
}

def output = arity[R]

Cardinality

You can calculate the cardinality of a relation with count:

// read query

def R = {1; 3; 5; 7; 9}

def output = count[R]

It does not matter whether a relation has tuples with various lengths: count returns the number of tuples, regardless of length.

You only have to watch out when calculating the cardinality of the empty relation {}. For the empty relation, count evaluates to false. To get the zero for the cardinality, you can use the Standard Library relations: either left_override or right_override, which can be written in infix form as <++ and ++>, respectively. Consider the two examples below:

// read query

def output = count[{}]

// read query

def output = (count[{}] <++ 0)

Notice that in the first example there was no output, because count[{}] evaluates to false.

Formatting

In Rel neither indentation nor line breaks matter. The style conventions adopted on the website are for readability purposes.

Consider the following code:

// read query

def club  {
   ("Neymar", "PSG");
   ("Messi", "BFC");
   ("Werner", "Chelsea");
   ("Pulisic", "Chelsea")
}

def output = club

ic {count[club] = 4}

The declaration ic {count[club] = 4} is an example of an integrity constraint.

You can also write the above like this:

// read query

def club  {
   ("Neymar", "PSG");
       ("Messi", "BFC");
("Werner", "Chelsea"); ("Pulisic", "Chelsea") }

def output = club          ic {count[club] = 4}

Both yield the same result. Indeed, the two code blocks are not just correct in Rel, they are also syntactically identical and render the same output.

Standard Library

Rel includes a Standard Library with many functions and utilities; for example, range, maximum, minimum, sin, cos, and many other mathematical operations. The Standard Library also includes higher order definitions that take relations as arguments, such as argmax, argmin, and first.

Help

The query help[:name] — or, in module syntax, just help:name — will display a brief docstring for each relation. For example, help:argmax, help:range, or help:min.

Summary

This article has covered the basics of Rel syntax. The next in the Rel Primer series focuses on aggregations, group-by, and joins, followed by more advanced features of Rel.
